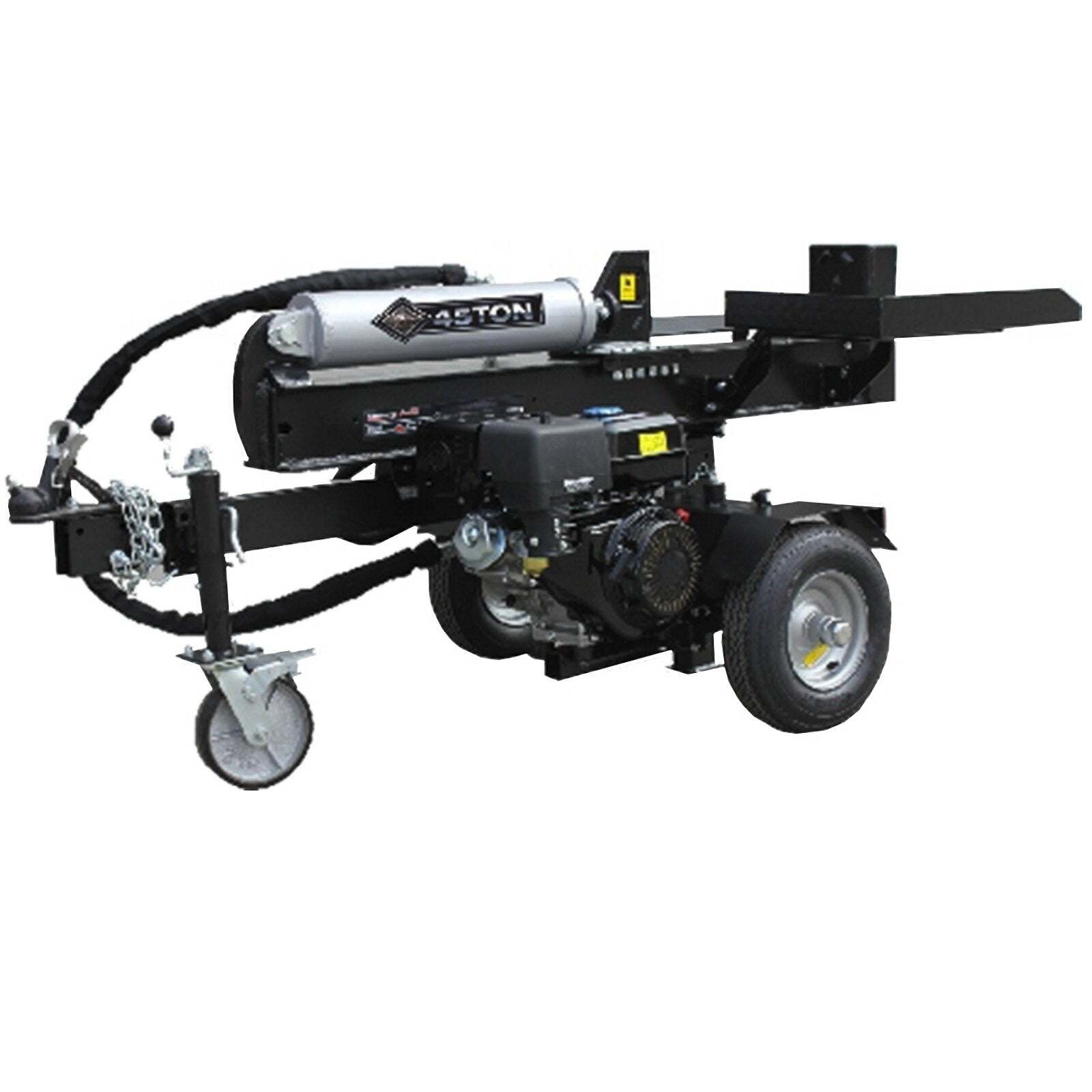

BLACK DIAMOND 45TON 15HP HEAVY DUTY LOG SPLITTER WITH HYDRAULIC TABLE

The LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter has been built to split more wood with much less effort than you would have thought possible.

Millers Falls Black Diamond Log Splitters have been manufactured with the compact, powerful and innovative features to give the best performance and rigourously tested to meet high quality standards specifically for the Australian market. They have been one of the top choices in Australian market for years due to their durability, reliability and safety functions.

Its powerful 45 Tons of splitting force and huge 200mm wearproof hardened cast steel splitting wedge (the majority of other log splitters only have 150-180mm wedges) gives the  LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter the strength and ability to easily out-split other log splitters on the market and the power to make short work of even the hardest of Australian hardwoods.

The  LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter operates in both a horizontal and vertical position which means that you can adapt it to the most comfortable position for you in any given situation. Your back will be eternally grateful.

Another important feature of the  LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter is the auto return control valve which automatically retracts the ram when you remove your hand from the lever so that you can load the next log with less time and effort and its fitted with a heavy duty log table that allows more working room and easy access to logs that need more than a single split.

The 2 stage gear pump and heavy duty 5” (12.7cm) x 19.4” (49.3mm) hydraulic cylinder powered by the powerful 15 horsepower, OHV 4 stroke petrol engine allows the LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter to build to maximum pressure at lightning speed taking even more time and effort out of the equation.

The large 16 inch pneumatic tyres, quick release jockey wheel and 50mm cast steel coupling on the tow bar mean that you can take your  LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter to wherever the timber to be split is on your property easily rather than having to cart all the wood to the splitter.

Why not take a lot of the time, effort and aching back out of chopping and splitting firewood the old fashioned and let the  LS45BD Millers Falls Black Diamond 45 Ton Manual Start Hydraulic Log / Wood Splitter do most of the work for you?

Features and specifications:

• Brand: Millers Falls Black Diamond
• Model: LS45BD
• Engine: 15 horsepower, 4 stroke, OHV, air cooled
• Manual (recoil) start
• Hydraulic cylinder size: 5” (127mm) diameter x 19.4”(493mm) stroke
• Gear pump : 2 stage 11GPM
• Automatic return control valve with safety release function
• Maximum splitting force: 45 ton
• Wedge height 8” (200mm)
• Split and return cycle time: 18 seconds
• Maximum log length: 21 1/2” (550mm)
• Working position: Horizontal and vertical
• Wheels and tyres: 16” pneumatic
• Jockey wheel: 8” (200mm) x 2” (50mm)
• Coupler: 50mm cast steel with safety chains
• Maximum recommended towing speed: 72 km/h
• Package dimensions: 172cm x 52cm x 74cm
• Package weight: 320kg
• 12 months warranty
