Elliott Bros

BLACK DIAMOND 50TON ELECTRIC START HEAVY DUTY SPLITTER WITH HYDRAULIC LIFTING TABLE

BLACK DIAMOND 50TON ELECTRIC START HEAVY DUTY SPLITTER WITH HYDRAULIC LIFTING TABLE

Regular price $2,990.00 AUD
Regular price Sale price $2,990.00 AUD
Sale Sold out

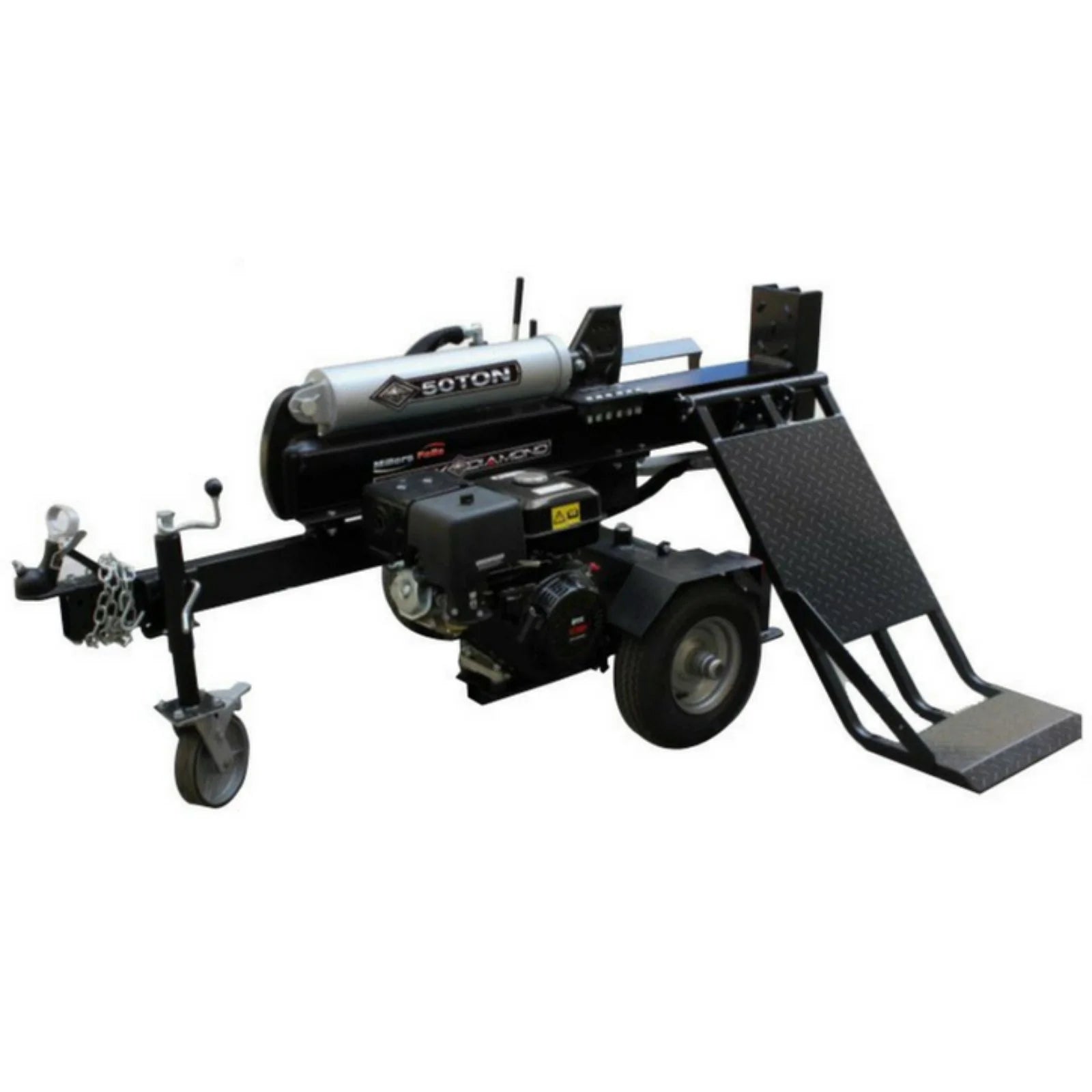

The LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table has been built to split more wood with much less effort than you would have thought possible.

Millers Falls Black Diamond Log Splitters have been manufactured with the compact, powerful and innovative features to give the best performance and rigorously tested to meet high quality standards specifically for the Australian market. They have been one of the top choices in Australian market for years due to their durability, reliability and safety functions

Its powerful 50 Tons of splitting force and huge 200mm wearproof hardened cast steel splitting wedge (the majority of other log splitters only have 150-180mm wedges) gives the  LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table the strength and ability to easily out-split other log splitters on the market and the power to make short work of even the hardest of Australian hardwoods.

Another important feature of the LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table is the auto return control valve which automatically retracts the ram when you remove your hand from the lever so that you can load the next log with less time and effort and its fitted with a heavy duty hydraulic lifting table that allows more working room and eliminates the need to even lift the logs to be split onto the splitter.

The 2 stage gear pump and heavy duty 5” (12.7cm) x 19.4” (49.3mm) hydraulic cylinder powered by the powerful 15 horsepower, OHV 4 stroke petrol engine allows the LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table to build to maximum pressure at lightning speed taking even more time and effort out of the equation.

The large 16 inch pneumatic tyres, quick release jockey wheel and 50mm cast steel coupling on the tow bar mean that you can take your  LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table to wherever the timber to be split is on your property easily rather than having to cart all the wood to the splitter. Your back will be eternally grateful.

Why not take a lot of the time, effort and aching back out of chopping and splitting firewood the old fashioned and let the LS50LTBD Millers Falls Black Diamond 50 Ton Electric Start Hydraulic Log / Wood Splitter with Jockey Wheel and Hydraulic Lifting Table do most of the work for you?

Features and specifications:
  • Brand: Millers Falls Black Diamond
  • Model: LS50LTBD
  • Engine: 15 horsepower, 4 stroke, OHV, air cooled
  • Electric start
  • Battery: 12 volt,9AH maintenance free, lead acid
  • Hydraulic cylinder size: 5” (127mm) diameter x 19.4”(493mm) stroke
  • Gear pump : 2 stage 11GPM
  • Automatic return control valve with safety release function
  • Maximum splitting force: 50 ton
  • Wedge height 8” (200mm)
  • Split and return cycle time: 18 seconds
  • Maximum log length: 21 1/2” (550mm)
  • Hydraulic lifting table
  • Working position: Horizontal only
  • Wheels and tyres: 16” pneumatic
  • Jockey wheel: 8” (200mm) x 2” (50mm)
  • Coupler: 50mm cast steel with safety chains
  • Maximum recommended towing speed: 72 km/h
  • Package dimensions: 173cm x 52cm x 105cm
  • Package weight: 360kg
  • 12 months warranty

This apparatus is to be towed on private property ONLY not to be towed on public roads.
